Clearance 1 1/4 in. Grip Rail (Long, 41-72 in.) Light Stand Accessories

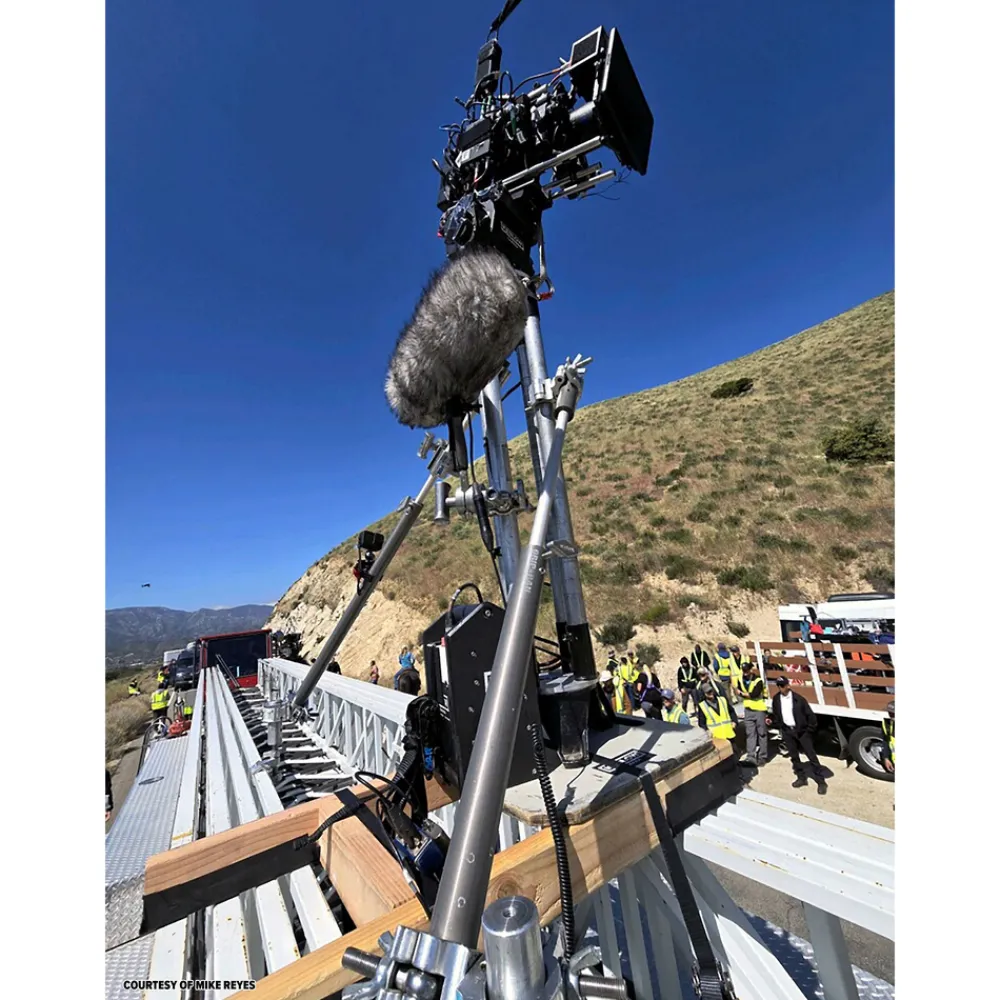

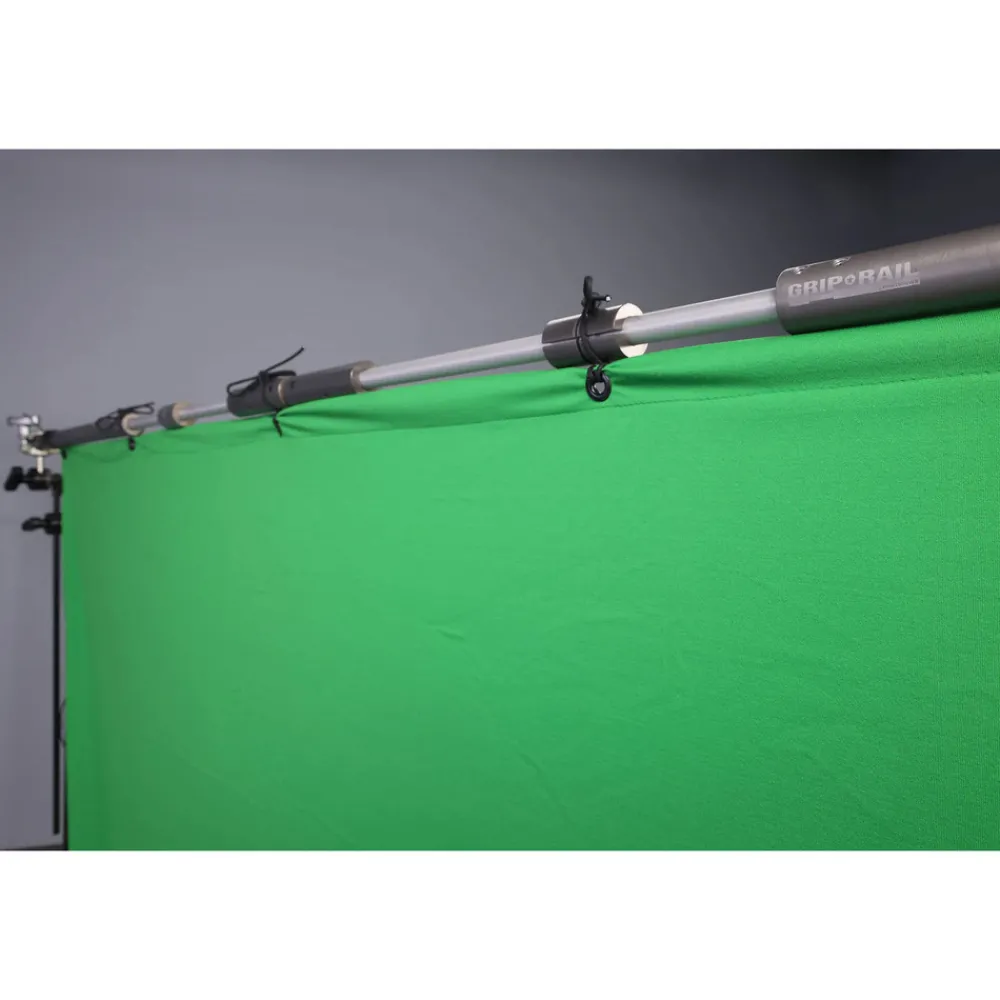

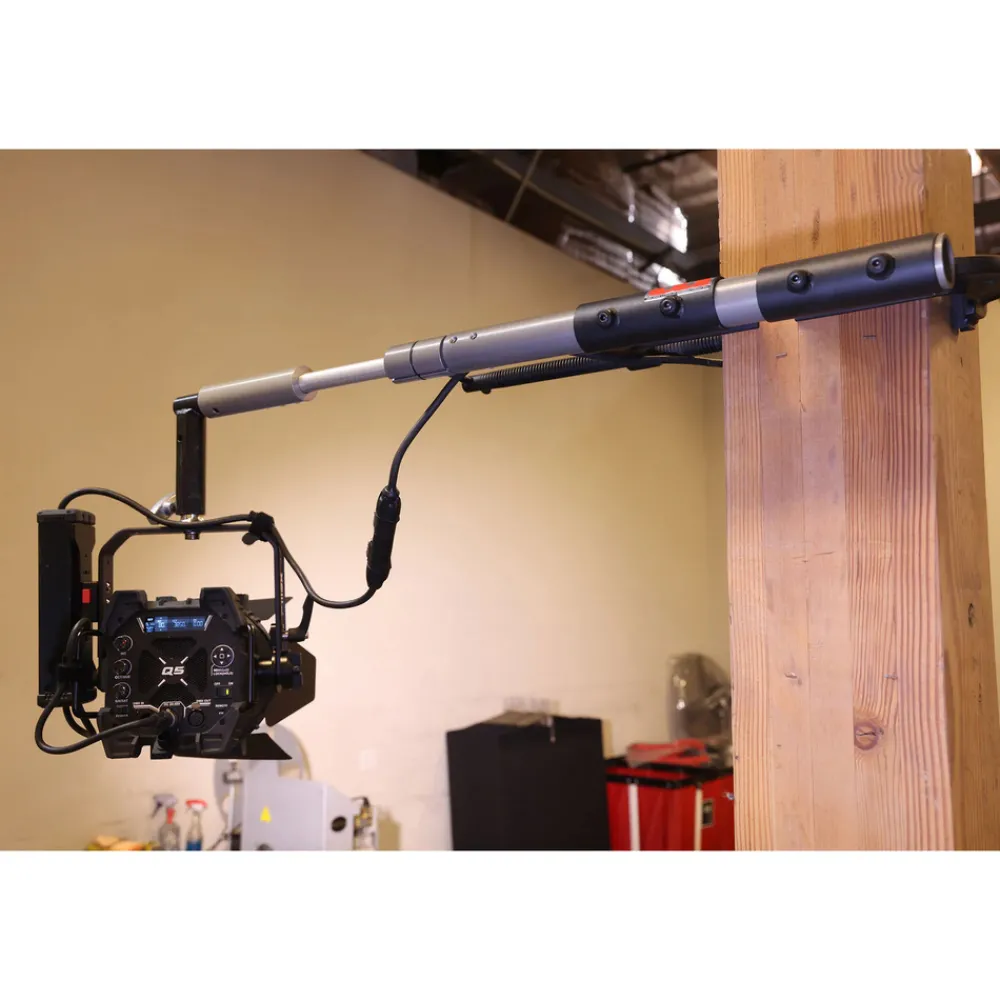

Matthews Studio Equipment introduces Grip Rail, the world’s first telescoping grid pipe system designed for on the fly adjustments for multiple applications and industries. For the imaging world, Grip Rail is useful for rigging cameras, lights, backdrops, building rag frames, can be used as a candle stick and so much more. Grip Rail is a no-cutting, worthy alternative to imprecise and bulky pipe organs and other rail systems. Each Grip Rail comes standard with a clamp reducer giving you the ability to mount clamps from end to end. Both the Grip Rail and the Clamp Reducer work with grid clamps, Matthellinis, and standard pipe rail fittings and comes standard with a 360° rotating Junior Receiver that offers three points of contact for secure mounting. Tighten or loosen the telescoping aluminum rod with the included grub screws or replace with a T-Handle to go completely tool-less. Grip Rail(s) can be seamlessly joined with the double ended junior pin, or use the double ended junior pin to convert the female junior receiver to male. Multiple Patents Pending.

CHARACTERISTICS:

Telescoping “Speed Rail”, “Grid Pipe”, “Scaff Pipe”

Junior 1-1/8″ Receiver on one end of Grip Rail for easy and safe mounting

Interface seamlessly with all rail fittings with matching diameter, grid or scaff style clamps, Matthellinis, & more

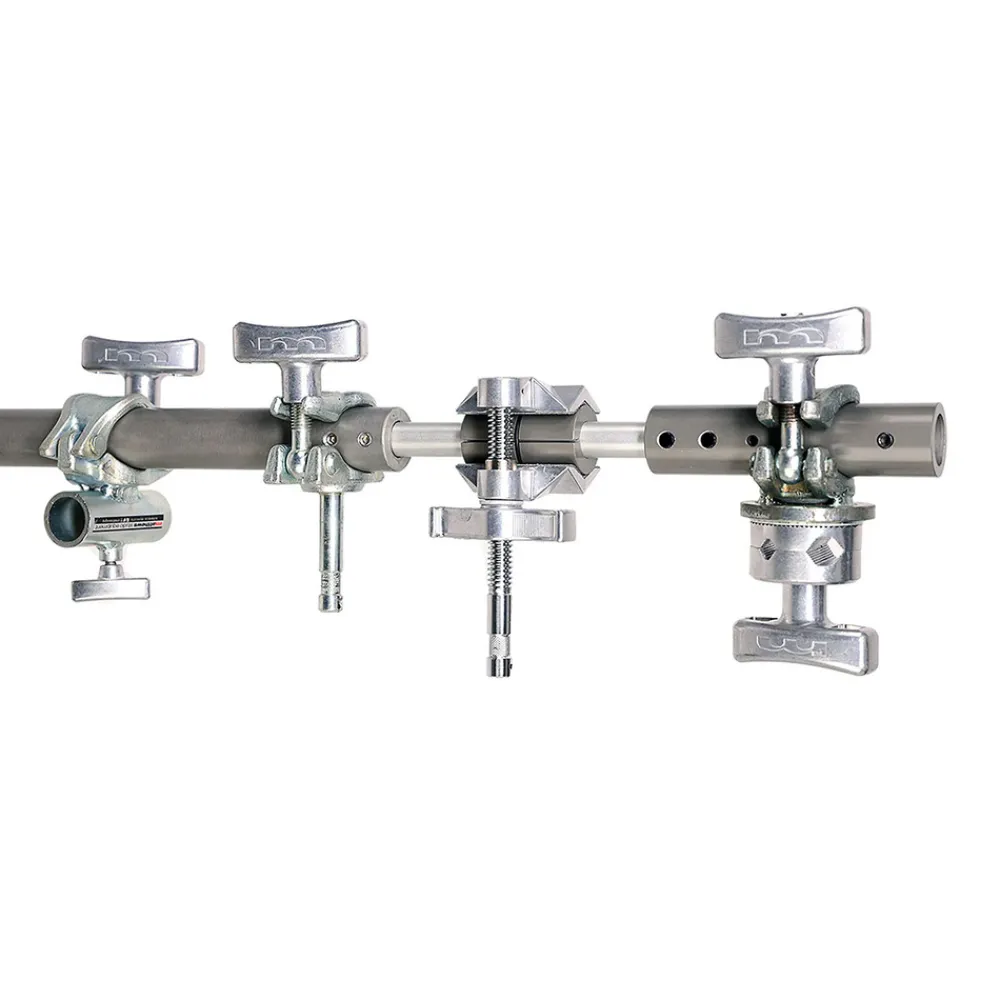

Dynamic “Clamp Reducer” allows end to end mounting of clamps; 1EA included with Grip Rail

2 section system with internal stop that prevents sections from separating or coming apart

Locking points can be used with Grub “set” screws or T-handles

Can be used in both the vertical and horizontal position

SPECIFICATIONS:

1-1/4″ (42mm OD) and 1-1/2″ (48mm OD) diameter available

Constructed out of aluminum tube, barstock and billet

Approximately 26″-42″ (64cm – 107cm) and 41″-72″ (101cm – 183xm) length available

Weight, Grip Rail 1-1/4″ Short: 4lbs (1.8kg)

Weight, Grip Rail 1-1/4″ Long: 6lbs (2.72kg)

Weight, Grip Rail 1-1/2″ Short: 5.5lbs (2.5kg)

Weight, Grip Rail 1-1/2″ Long: 7.5lbs (3.4kg)
