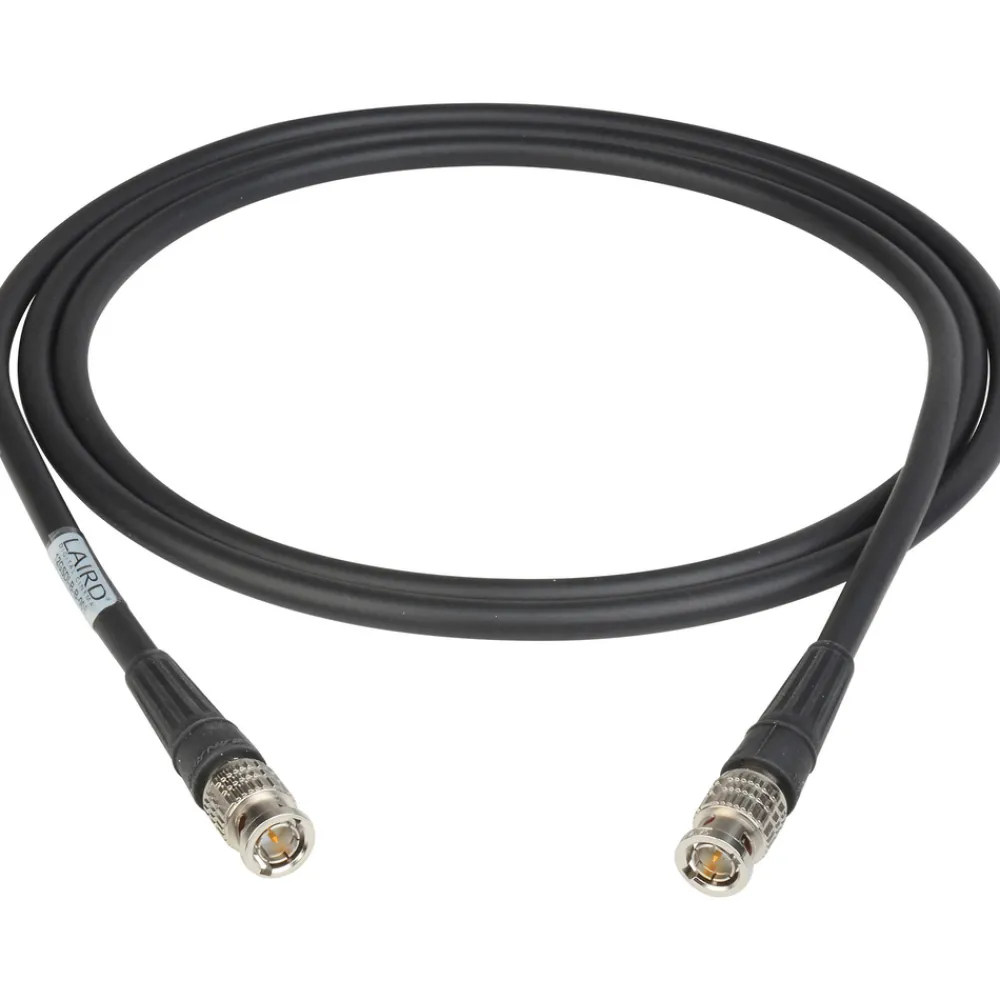

Fashion 25 ft. 12GSDI-B-B 12G-SDI UHD 4K Single-Channel BNC Cable Video Cables

Laird delivers the most advanced BNC coaxial cables on the market for 12G / 4K UHD applications in broadcast TV, sports, live events, and commercial production workflows. Effectively transmit 12G-SDI signals up to 325 feet. These 12G SDI cables will be able to handle future video formats and signals, making them perfect for new facility installs and broadcast towers.

This coax cable features enhanced attenuation characteristics that allow transport of 12G signals at much greater distances than comparable sized coax. Cables are fully SMPTE ST-2082-1 compliant and hand crafted with Canare L-5.5CUHD miniature coaxial and BCP-D55UHD BNC connectors. A superb return loss at 12 GHz of 15 dB, 20 dB @ 6 GHz & 26 dB @ 3 GHz makes these cables perfect for 12G, 6G and 3G systems. Designed for Ultra High Definition and 4K signal transmission.

12G-SDI Maximum Distance
Laird Certifies this cable to work at a Max Transmission Distance of 250 Feet for 12G-SDI even though Canare may show this distance as 300 Feet. To meet the Laird max transmission standard, signal integrity must remain 100% functional without any CRC errors. Your 12G-SDI ST 2082 signals may function at or beyond the manufacturer-certified lengths without issues; however, when CRC errors are present there could be drops in audio, video, meta, and ancillary data. In most circumstances, video integrity remains intact at OEM distance.

FEATURES:

Designed for UHD and 4K Video Transport

SDI Formats including 1.5G, 3G, 6G and 12G

SMPTE 2082-1 Standards

Fixed and Cable Reel Deployment in Studios, Trucks, Permanent Installations

Excellent Attenuation

Terminated with 12G 75Ω BNC Connectors

Flame Retardant
