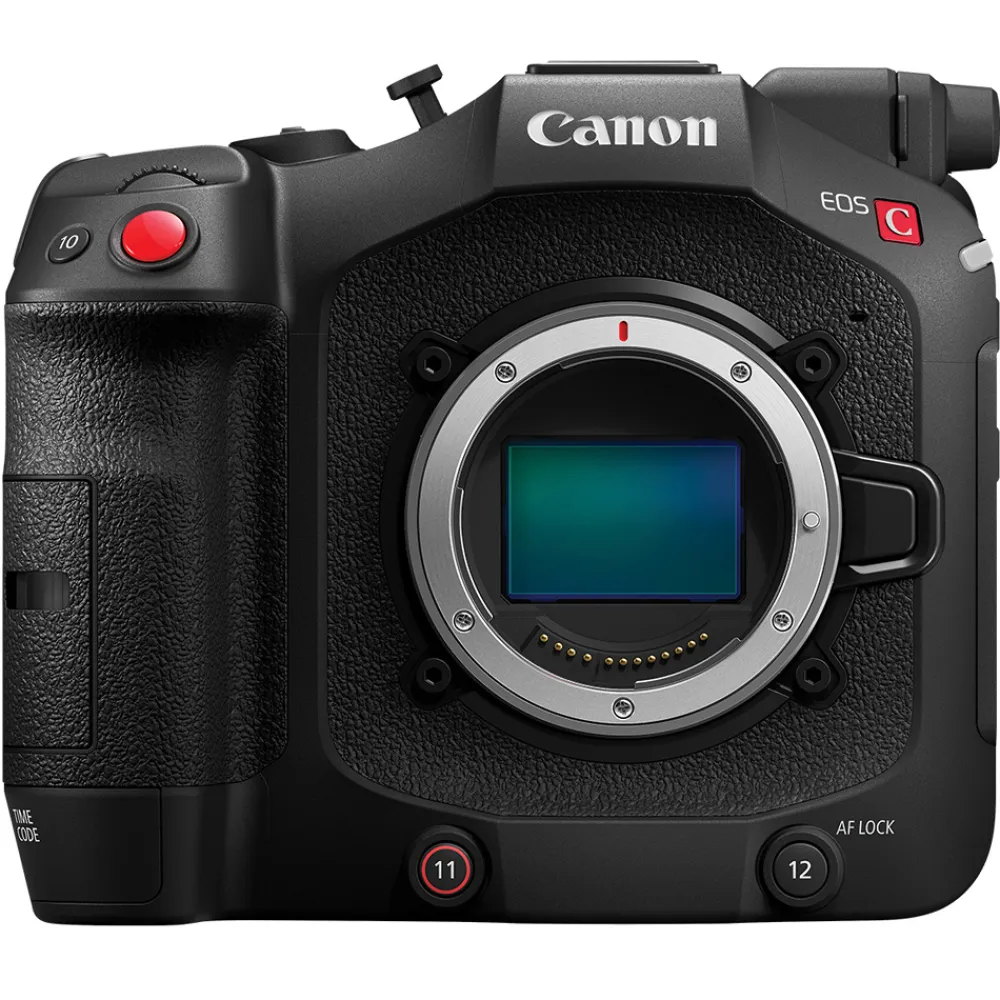

Hot EOS C80 Cinema Camera Body (RF Mount) Digital Cinema Cameras

Full-Frame BSI Stacked CMOS

19.05 Megapixels

Canon RF

Cinema RAW Light 12-Bit
UHD 6K (6000 x 3164) from 1 to 29.97 fps [553 to 639 Mb/s VBR] 4368 x 2304 from 1 to 29.97 fps [678 Mb/s VBR] XF-AVC Intra 4:2:2 10-Bit
4096 x 2160 from 1 to 60.00 fps [240 to 600 Mb/s VBR] 3840 x 2160 from 1 to 60.00 fps [240 to 600 Mb/s VBR] 2048 x 2160 from 1 to 120 fps [120 to 300 Mb/s VBR] 1920 x 1080 from 1 to 120 fps [120 to 300 Mb/s VBR] XF-AVC Long GOP 4:2:2 10-Bit
4096 x 2160 from 1 to 120 fps [130 to 250 Mb/s VBR] 3840 x 2160 from 1 to 120 fps [130 to 250 Mb/s VBR] 2048 x 1080 from 1 to 180 fps [50 Mb/s VBR] 1920 x 1080 from 1 to 180 fps [25 to 50 Mb/s VBR] XF-AVC S Intra 4:2:2 10-Bit
4096 x 2160 from 1 to 60.00 fps [240 to 1200 Mb/s VBR] 3840 x 2160 from 1 to 60.00 fps [240 to 1200 Mb/s VBR] 2048 x 1080 from 1 to 120 fps [120 to 300 Mb/s VBR] 1920 x 1080 from 1 to 120 fps [120 to 300 Mb/s VBR]

16 Stops

Yes

1/2000 to 1 Second

Mechanical Filter Wheel with 2-Stop (1/4), 4-Stop (1/16), 6-Stop (1/64), 8-Stop (1/256), 10-Stop (1/1024) ND Filters

2000 to 15,000K
Presets: AWB, Daylight, Set A, Set B, Tungsten

100 to 102,400

3.5″

Touchscreen LCD

Auto and Manual Focus

Stereo

Canon BP-AN Series

6.3 x 5.4 x 4.6″ / 160 x 138 x 116 mm
10.9 x 6.8 x 6.3″ / 276 x 173 x 160 mm (With Handle, Included Battery, Mic Holder)

2.89 lb / 1.31 kg (Body Only)
3.406 lb / 1.545 kg (With Battery, Handle)

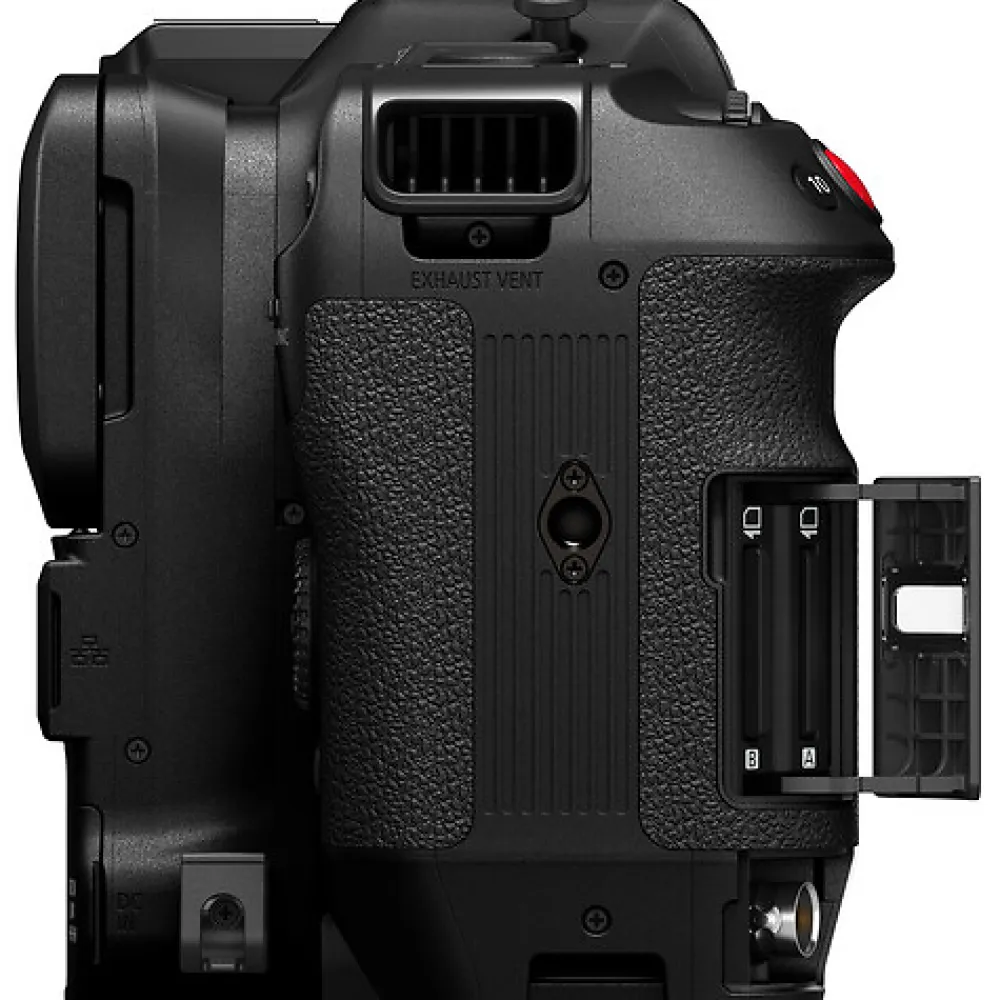

Slot 1: SD/SDHC/SDXC
Slot 2: SD/SDHC/SDXC

Electronic Rolling Shutter

H.264, MPEG2, RTP, RTSP, SRT, UDP
1920 x 1080 at 50i, 50p, 59.94i, 59.94p (4.0 to 9.0 Mb/s)

Canon Log 2, Canon Log 3, HDR-HLG, Rec709, Rec2020

Cinema RAW Light: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 4-Channel 24-Bit 48 kHz LPCM Audio
XF-AVC S, XF-HEVC S: 2-Channel 16-Bit 48 kHz AAC Audio

1x BNC (12G-SDI) Output
1x BNC (3G-SDI) Monitor Output
1x HDMI (Unspecified Signal) Output

2x Mini XLR Input
1x 1/8″ / 3.5 mm TRS Stereo Headphone Output
1x 1/8″ / 3.5 mm TRS Stereo Microphone Input on Camera Body

1x RJ45 (XC) Control
1x USB-C Monitor
1x BNC (Timecode)
1x 2.5 mm Sub-Mini (LANC) Control

2.4 / 5 GHz Wi-Fi 5 (802.11ac)

1x Barrel (23.7 to 25VDC) Input

32 to 104°F / 0 to 40°C up to 85% Humidity

Actual: 26.67 Megapixel (6202 x 4300)
Effective: 19.05 Megapixel (6008 x 3170)

Yes, Cooke /i

Crops to Output Resolution When Using Super35 Mode

JPEG
