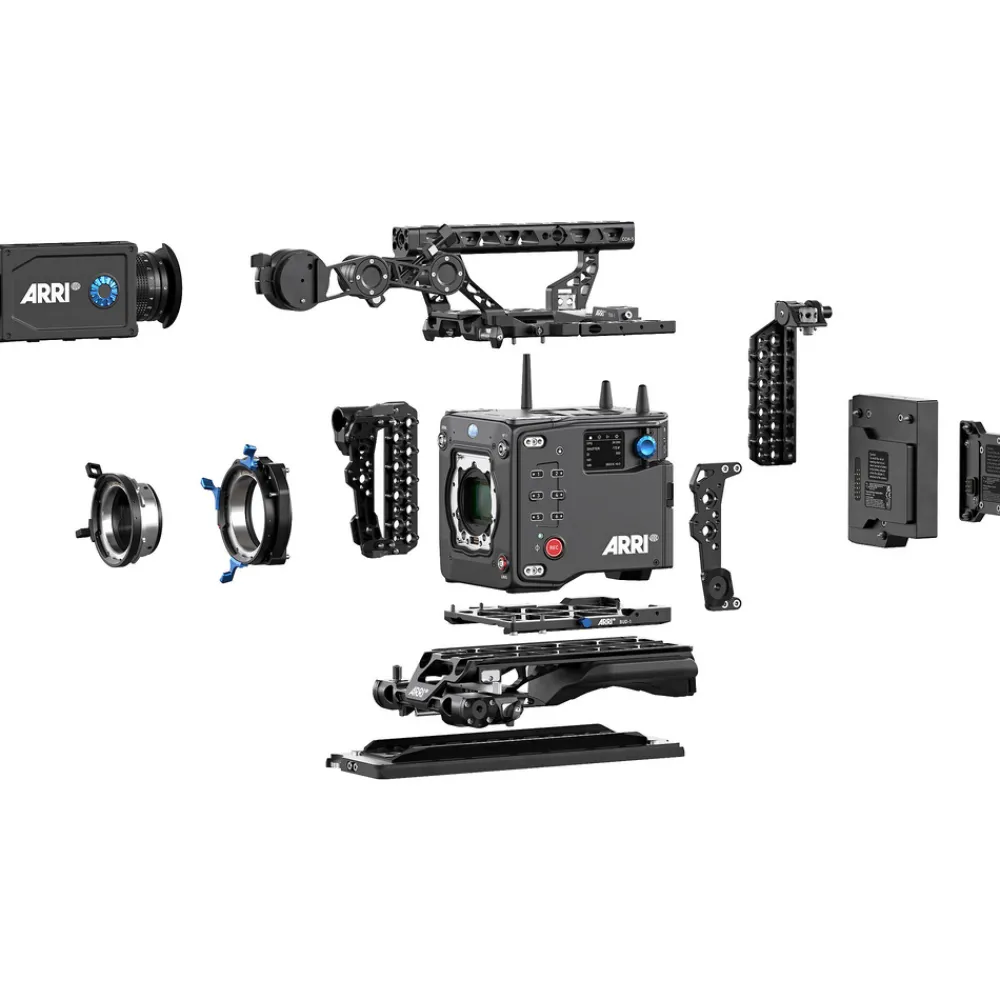

The Arri ALEXA 35 Base Production Set (LPL, MVF, 15mm)Â is designed to suit the workflow of a traditional camera department. The ALEXA 35 Base Prod. Set (LPL, MVF, 15mm) contains an ALEXA 35 camera with a Base License (frame rates up to 60 fps, ProRes recording, basic 16:9 and 2:1 spherical recording formats), LPL Mount (LBUS), PL-to-LPL Adapter, MVF-2 viewfinder, production accessories, and Power Distribution Module PDM-1.
Both lightweight 15 mm and studio 15 mm rod standards are supported on the CBP-6 bridge plate and shoulder pad that are part of the Production Support Set – Bottom (19mm). The full-size Center Camera Handle CCH-5 and extendable Viewfinder Mounting Bracket VMB-5 offer rock-solid support and rapid reconfiguration possibilities on set.
The ALEXA 35 camera with Base License can be upgraded through the ARRI Shop via temporary or permanent licenses with the following features: frame rates up to 120 fps, ARRIRAW recording, all Open Gate-width and anamorphic recording formats plus in-camera anamorphic de-squeeze, pre-recording, and look (ARRI Textures, ARRI Look Library, Custom Color Management). Each feature license can be purchased individually or all together in the Premium License.
Note: This set does not include recording media, a media dock/reader, batteries, or lenses, which should be ordered separately.
          Â
      Â
      Â
            Â
4608 x 2592 up to 60.00 fps
4096 x 2304 up to 60.00 fps
3840 x 2160 up to 60.00 fps
4096 x 2048 up to 60.00 fps
2048 x 1152 from 0.75 to 60.00 fps
1x BNC (Unspecified SDI) Input/Output
1x LEMO 6-Pin Line Input
1x LEMO 4-Pin Control Input/Output
1x LEMO 4-Pin (Serial) Data Input/Output
1x LEMO 5-Pin (Timecode) Input/Output
1x LEMO 10-Pin (Ethernet) Control
1x BNC (Sync) Input/Output
1x USB-C Data Input/Output
1x Pogo 5-Pin
1x pogo 18-Pin
            Â
          Â
- Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â Â

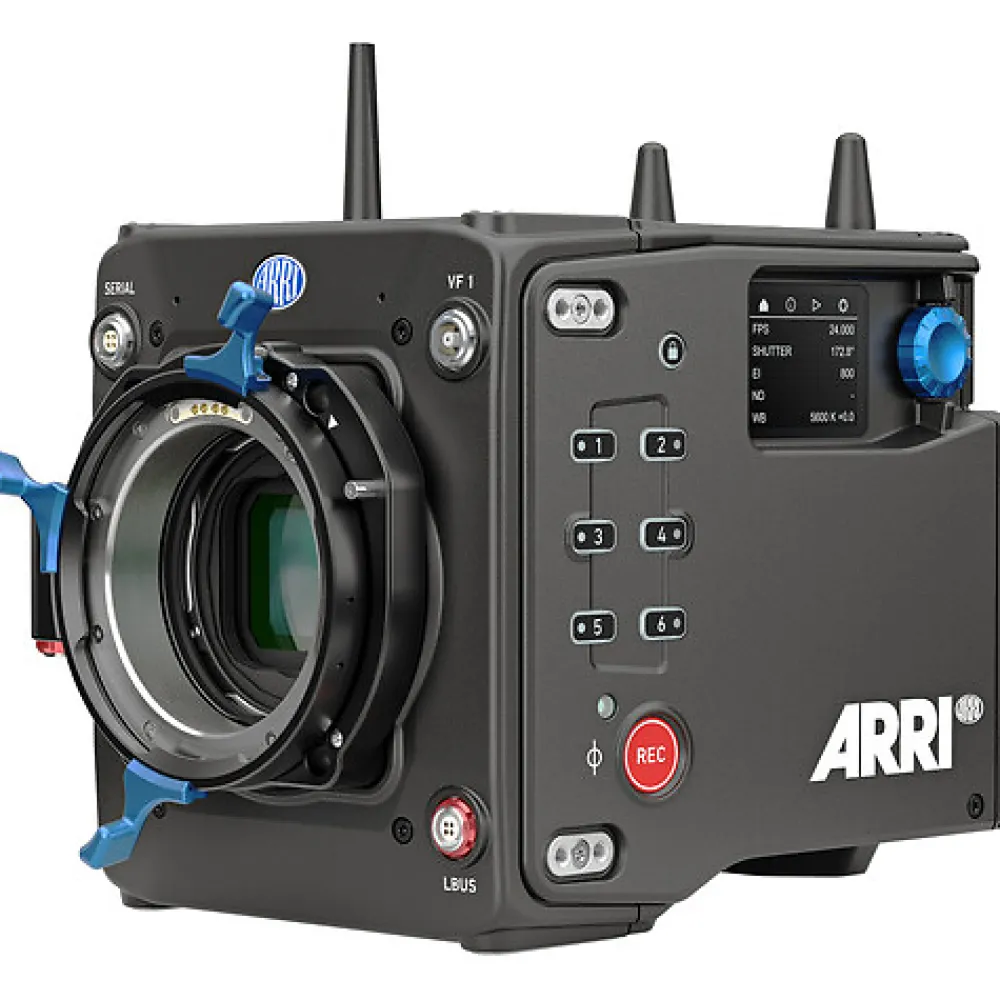

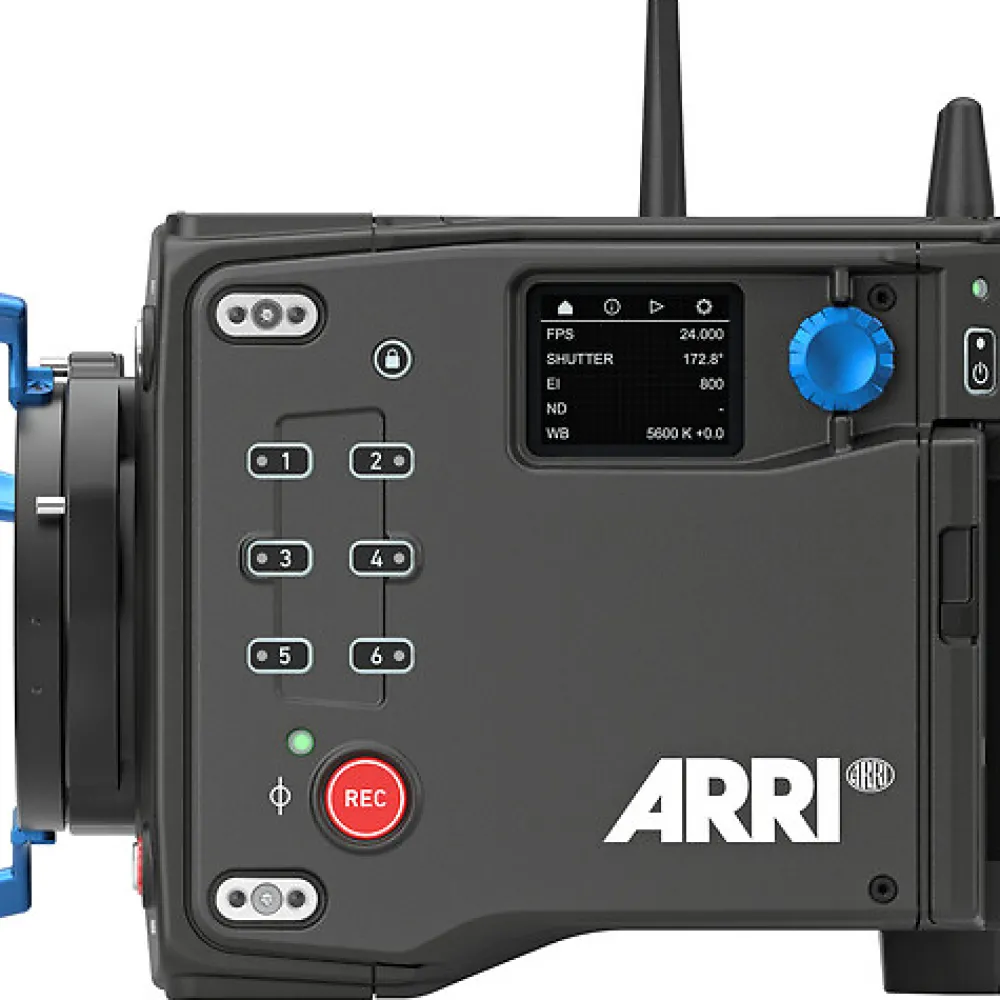

- ALEXA 35 camera body with Base license
- ARRI LPL Mount (LBUS)

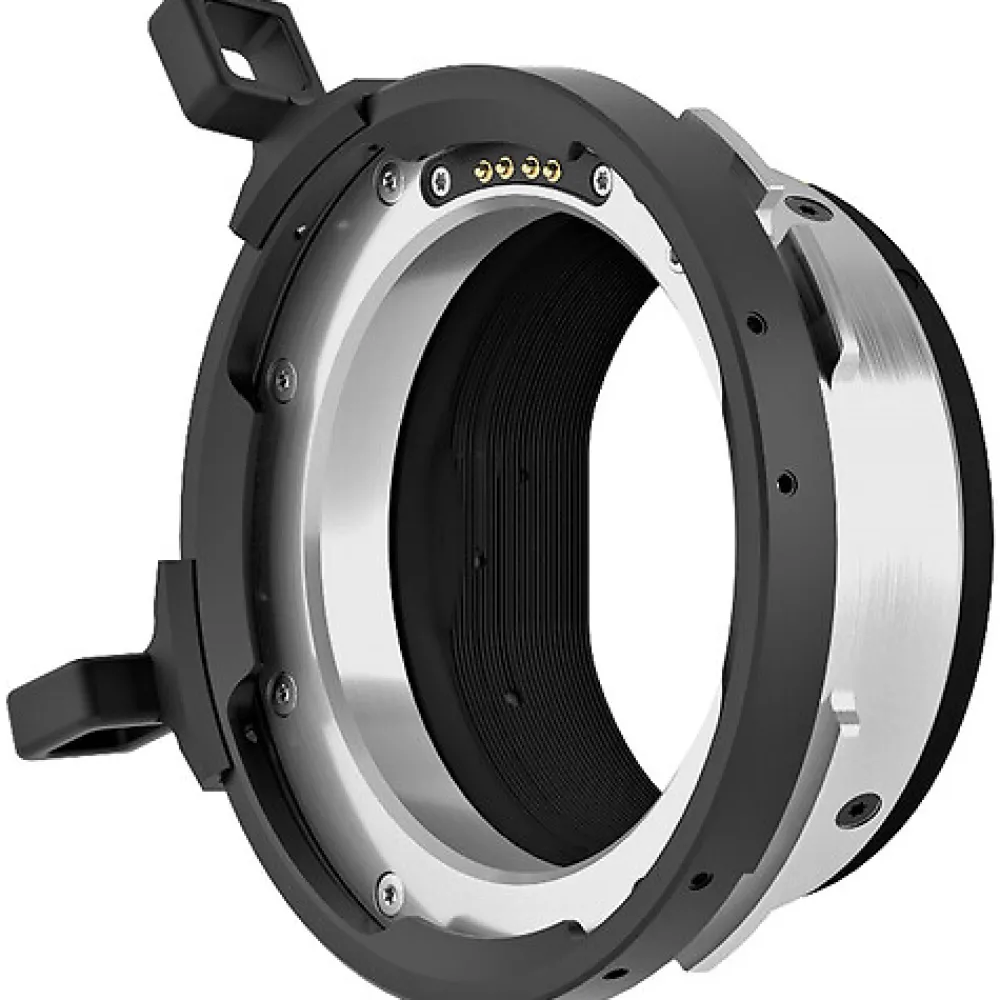

- ARRI PL-to-LPL Adapter

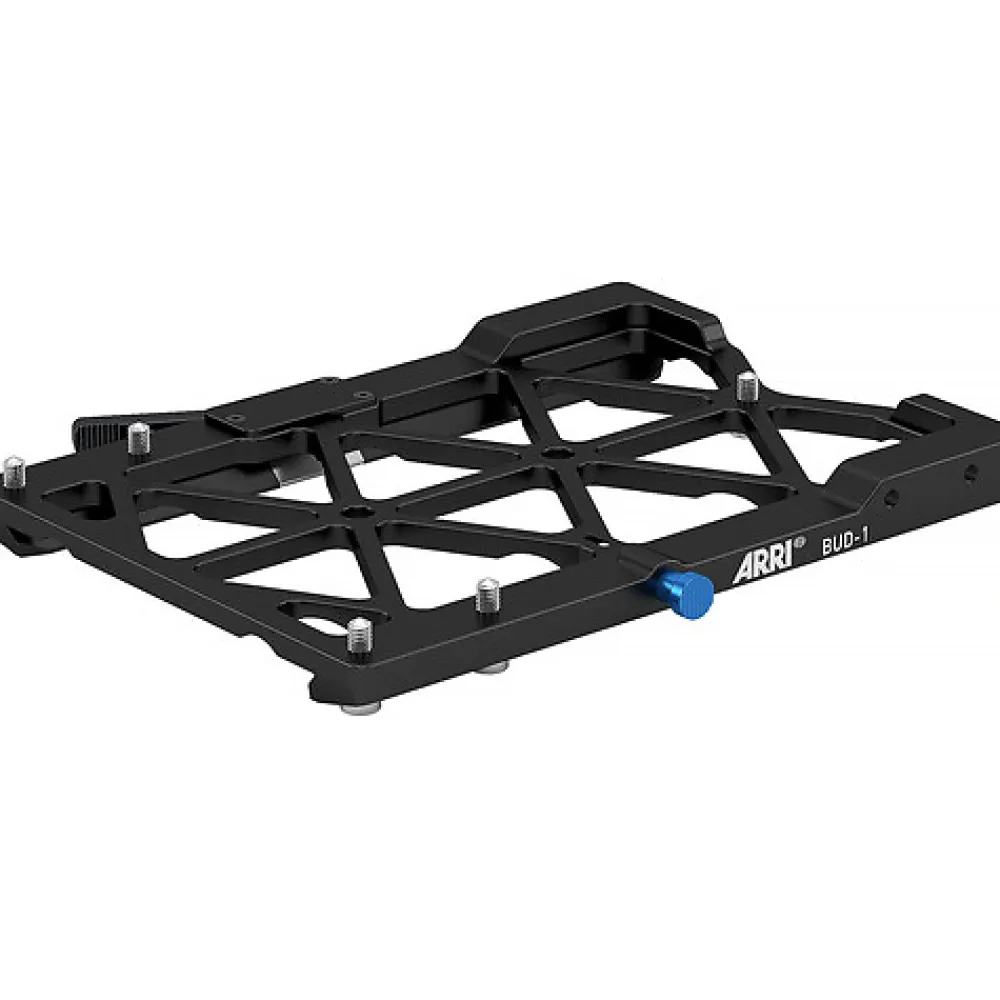

- Balance Utility Dovetail BUD-1

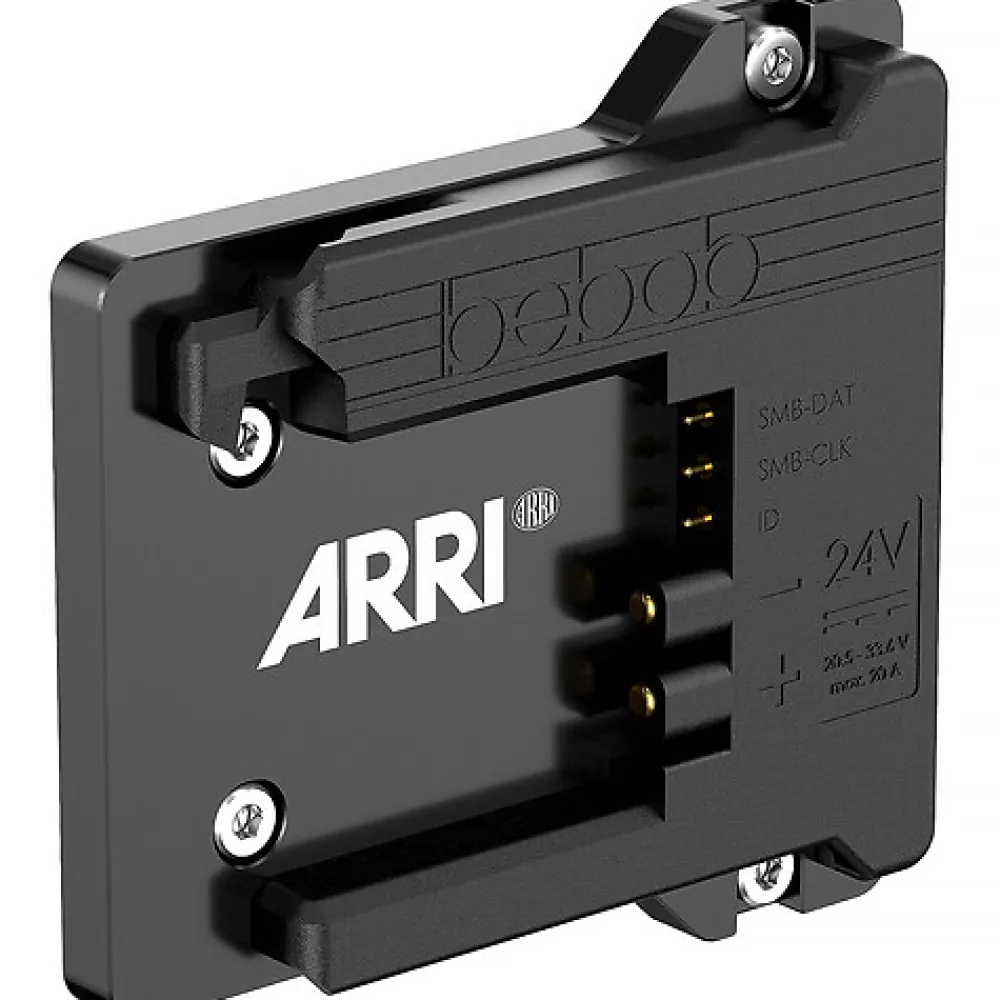

- B-Mount Battery Adapter

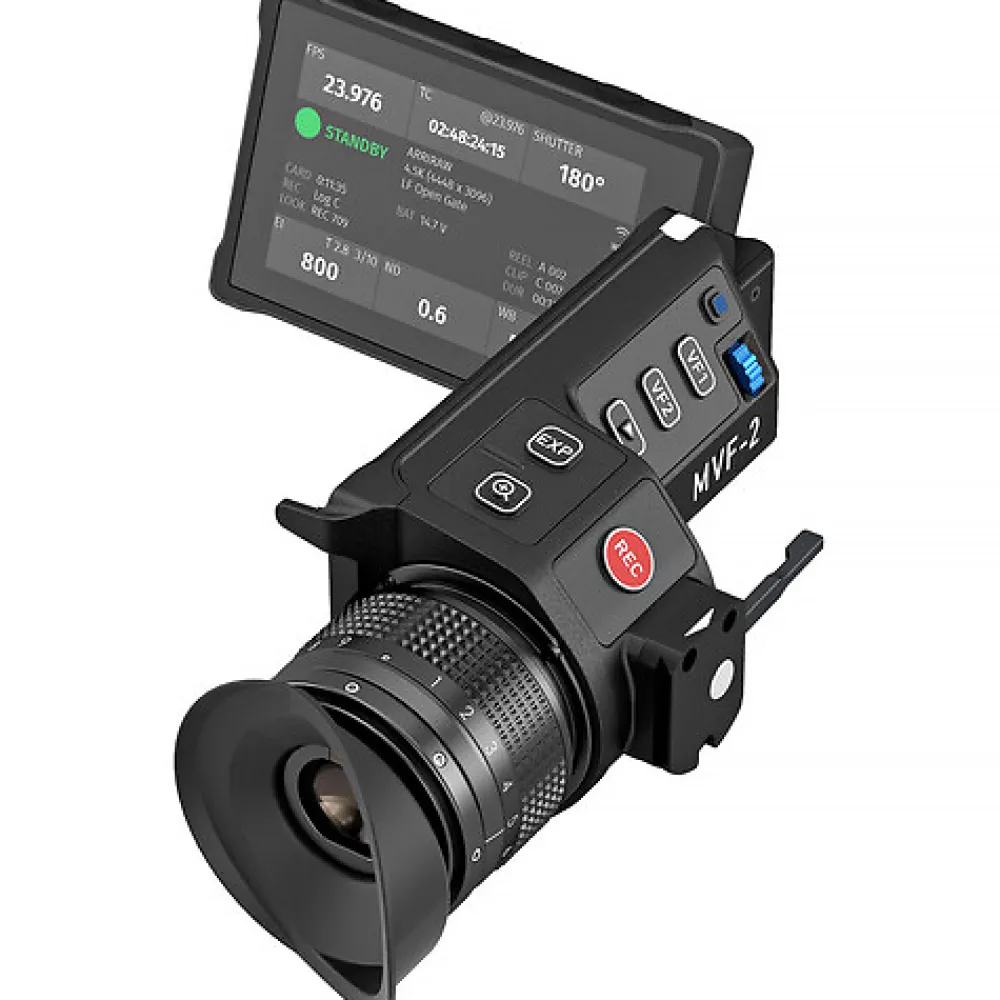

- Multi Viewfinder MVF-2
- Cable VF Right Angle (0.5m/1.5ft)

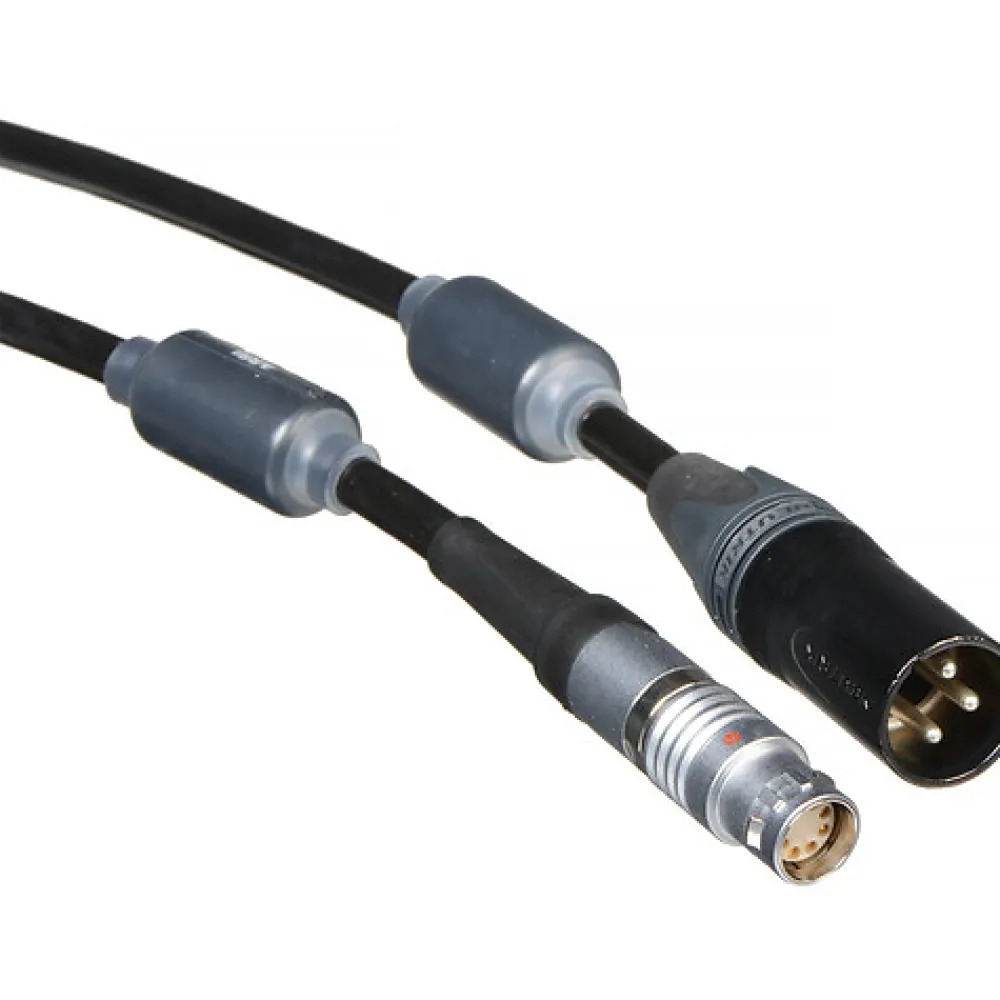

- AMIRA Power Cable Straight 2m/6.6in KC-50
- Power Distribution Module PDM-1

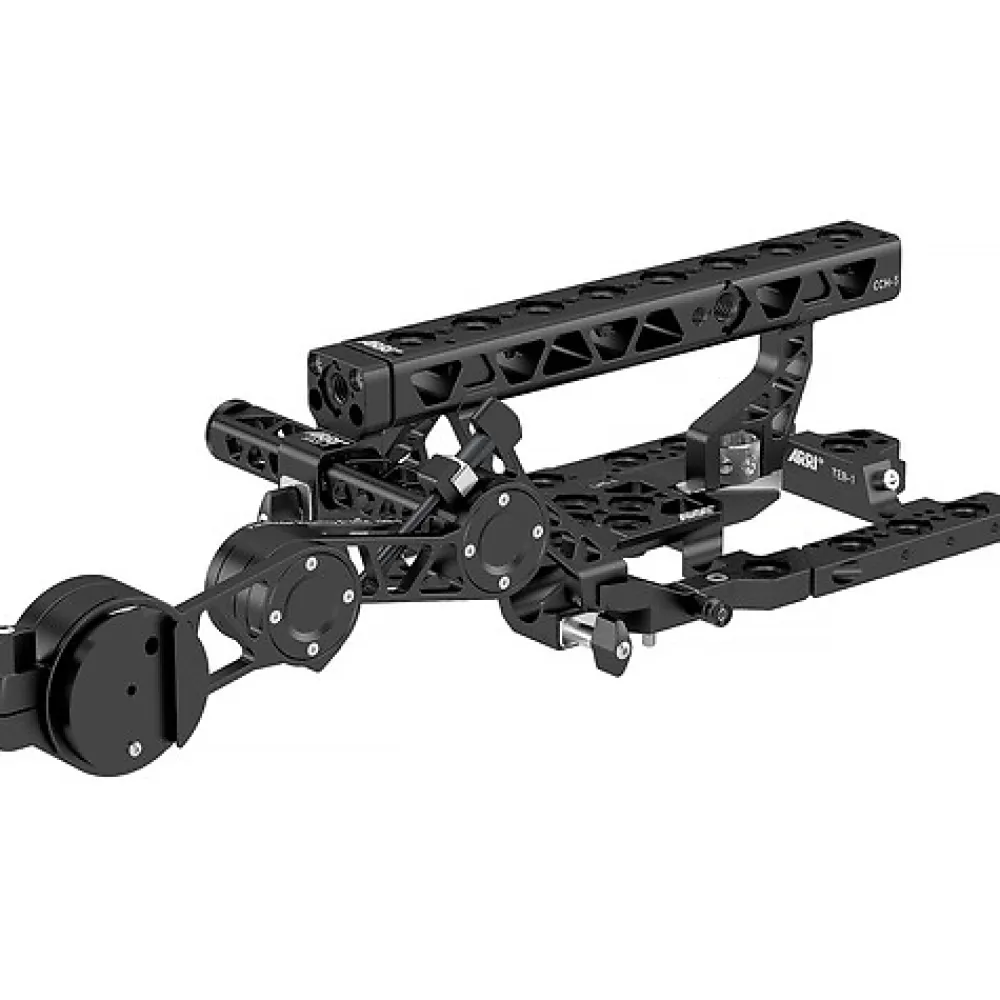

- Production Support Set – Top

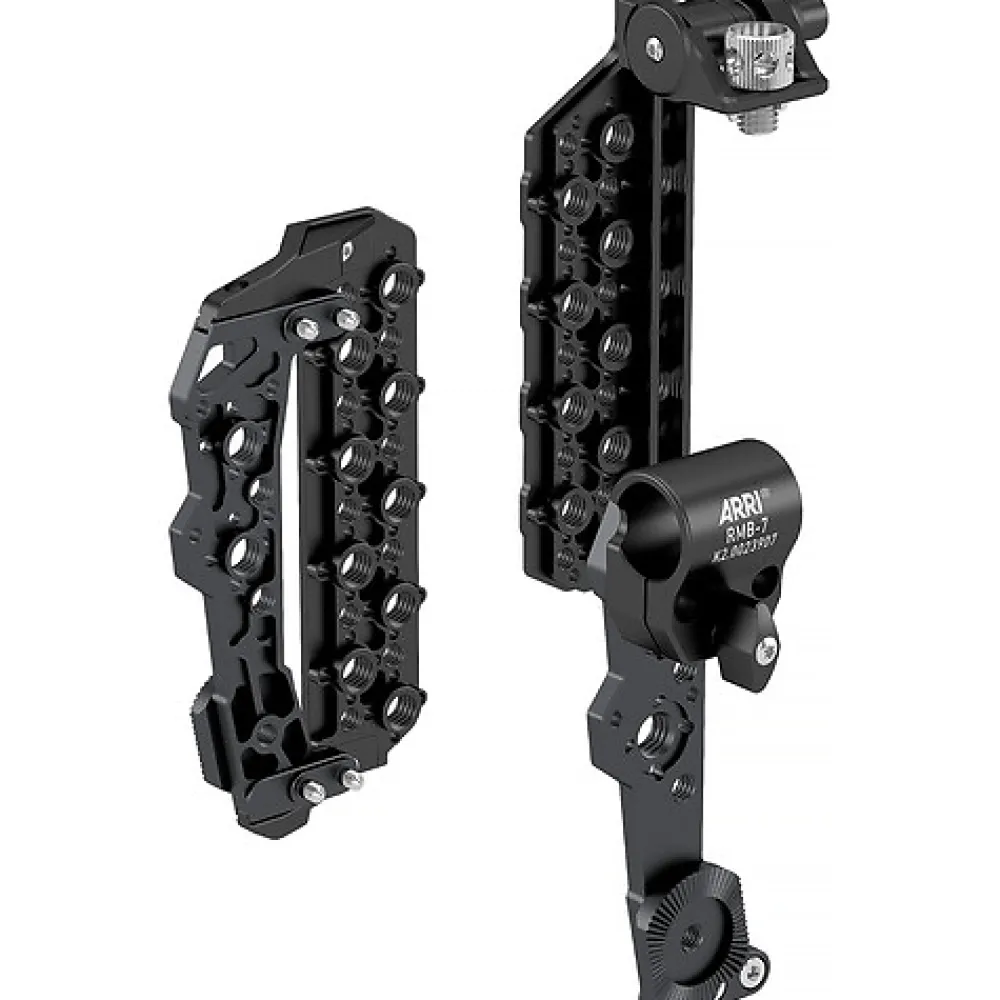

- Production Support Set – Side
- Production Support Set – Bottom (15 mm)
